ASUS ATS-850G 850W Gold Power Supply – Fully Equipped ATX PSU
ASUS ATS-850G 850W Gold Power Supply – Fully Equipped ATX PSU
Category |
Specification |
|---|
Brand |
ASUS |
Model |
ASUS-ATS-850G |
Power Output |
850W Total Power |
Form Factor |
ATX12V |
Efficiency Rating |
80 Plus Gold |
AC Input |
110-240V AC |
DC Rails |
+3.3V / +5V / +12V / -12V / +5Vsb |
Max Load |
20A / 20A / 70.83A / 0.3A / 3A |
Protections |
OPP, OVP, UVP, SCP, OCP, OTP |
MTBF |
>120,000 hours at 25°C |
Compliance |
RoHS |
0dB Fan Mode |
Not Supported |
Dimensions |
140 × 150 × 86 mm |

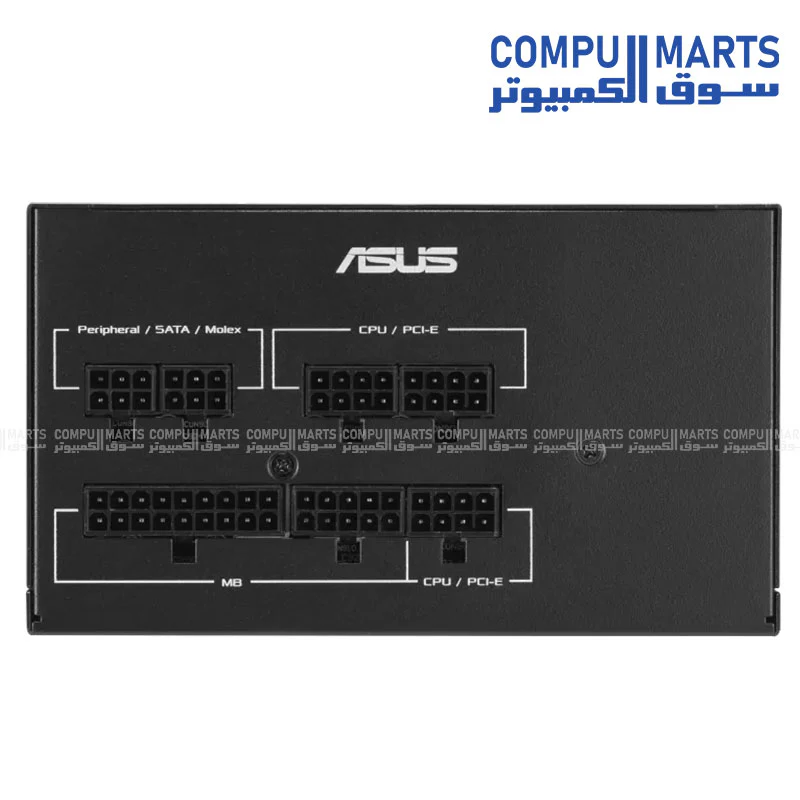

Connectors Included |
1× 24/20-pin |
2× CPU 4+4-pin |
3× PCI-E 6+2-pin |
3× SATA |
3× Peripheral |
PCIe Gen5 Cable |
Included (8-pin-8-pin-to-16-pin) |
Package Contents |
Power Cord, Cables, Screws, QSG |
Weight |
1.552 kg |
$0.02
ASUS ATS-850G 850W Gold Power Supply – Fully Equipped ATX PSU—
$0.02
Description
ASUS ATS-850G 850W Gold Power Supply – Fully Equipped ATX PSU
Category |
Specification |
|---|
Brand |
ASUS |
Model |
ASUS-ATS-850G |
Power Output |
850W Total Power |
Form Factor |
ATX12V |
Efficiency Rating |
80 Plus Gold |
AC Input |
110-240V AC |
DC Rails |
+3.3V / +5V / +12V / -12V / +5Vsb |
Max Load |
20A / 20A / 70.83A / 0.3A / 3A |
Protections |
OPP, OVP, UVP, SCP, OCP, OTP |
MTBF |
>120,000 hours at 25°C |
Compliance |
RoHS |
0dB Fan Mode |
Not Supported |
Dimensions |
140 × 150 × 86 mm |
Connectors Included |
1× 24/20-pin |
2× CPU 4+4-pin |
3× PCI-E 6+2-pin |
3× SATA |
3× Peripheral |
PCIe Gen5 Cable |
Included (8-pin-8-pin-to-16-pin) |
Package Contents |
Power Cord, Cables, Screws, QSG |
Weight |
1.552 kg |
