ASUS TUF GAMING B650M-E

ASUS TUF GAMING B650M-E

Category Specification Details
Model ASUS TUF GAMING B650M-E
CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors; Supports AMD Precision Boost Overdrive (PBO)
Chipset AMD B650
Memory 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC) to 4800; ECC and Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports AMD EXPO™; OptiMem II
Graphics 2 x DisplayPort (Max. 8K@60Hz as specified in DP 1.4); 1 x HDMI™ port (4K@60Hz as specified in HDMI 2.1)
Expansion Slots AMD Ryzen™ 7000 Series: 1 x PCIe 4.0 x16 slot; AMD B650 Chipset: 2 x PCIe 4.0 x1 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (CPU): PCIe 5.0 x4 mode (2242/2260/2280); M.2_2 (CPU): PCIe 4.0 x4 mode (2242/2260/2280); AMD RAIDXpert2 support (PCIe/SATA RAID 0/1/10)
Ethernet 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
USB (Rear) 2 x USB 3.2 Gen 2 (10G) (1 x Type-A + 1 x Type-C®); 2 x USB 3.2 Gen 1 (5G) (2 x Type-A); 4 x USB 2.0 (4 x Type-A)
USB (Front) 1 x USB 3.2 Gen 1 (5G) connector (Type-C®); 1 x USB 3.2 Gen 1 (5G) header (2 ports); 2 x USB 2.0 headers (4 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers

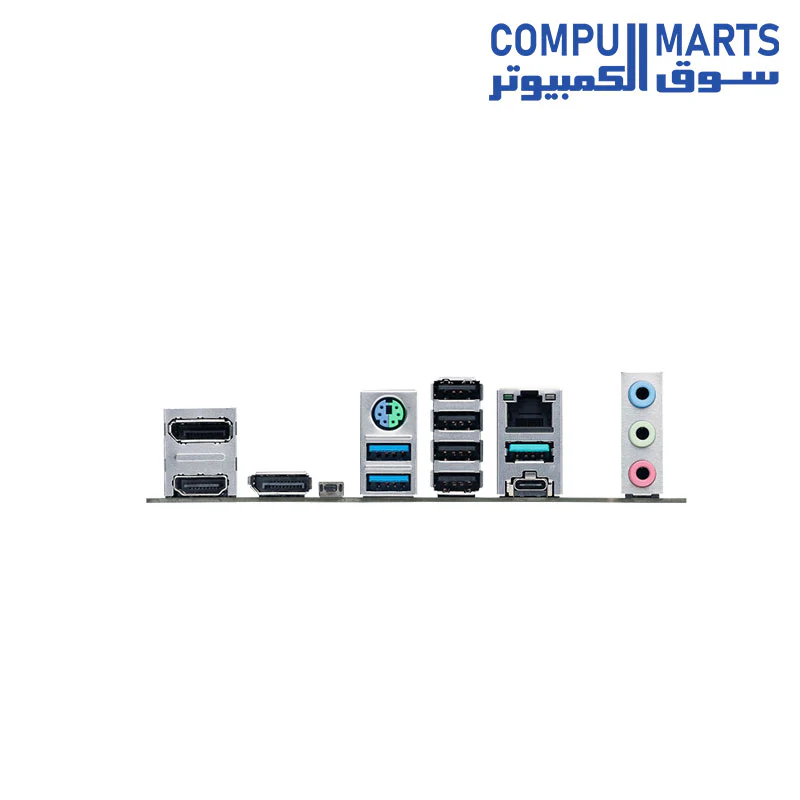

Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G), 2 x USB 3.2 Gen 1 (5G), 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI™, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 2 x 4-pin Chassis Fan, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Thunderbolt™ (USB4®) header support
Special Features ASUS TUF PROTECTION (DIGI+ VRM 8+2+1 stages, SafeSlot Core+, Stainless-Steel Back I/O); ASUS Q-Design (M.2 Q-Latch, Q-LED, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink)
Software Features Armoury Crate (Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; TUF GAMING CPU-Z; DTS Audio Processing
Form Factor micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
$49.82

Original: $166.05

-70%
ASUS TUF GAMING B650M-E—

$166.05

$49.82
Product image 1
Product image 2
Product image 3
Product image 4

Description

Category Specification Details
Model ASUS TUF GAMING B650M-E
CPU AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors; Supports AMD Precision Boost Overdrive (PBO)
Chipset AMD B650
Memory 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC) to 4800; ECC and Non-ECC, Un-buffered Memory; Dual Channel Architecture; Supports AMD EXPO™; OptiMem II
Graphics 2 x DisplayPort (Max. 8K@60Hz as specified in DP 1.4); 1 x HDMI™ port (4K@60Hz as specified in HDMI 2.1)
Expansion Slots AMD Ryzen™ 7000 Series: 1 x PCIe 4.0 x16 slot; AMD B650 Chipset: 2 x PCIe 4.0 x1 slots
Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports; M.2_1 (CPU): PCIe 5.0 x4 mode (2242/2260/2280); M.2_2 (CPU): PCIe 4.0 x4 mode (2242/2260/2280); AMD RAIDXpert2 support (PCIe/SATA RAID 0/1/10)
Ethernet 1 x Realtek 2.5Gb Ethernet; TUF LANGuard
USB (Rear) 2 x USB 3.2 Gen 2 (10G) (1 x Type-A + 1 x Type-C®); 2 x USB 3.2 Gen 1 (5G) (2 x Type-A); 4 x USB 2.0 (4 x Type-A)
USB (Front) 1 x USB 3.2 Gen 1 (5G) connector (Type-C®); 1 x USB 3.2 Gen 1 (5G) header (2 ports); 2 x USB 2.0 headers (4 ports)
Audio Realtek 7.1 Surround Sound High Definition Audio; Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G), 2 x USB 3.2 Gen 1 (5G), 4 x USB 2.0, 2 x DisplayPort, 1 x HDMI™, 1 x 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 2 x 4-pin Chassis Fan, 3 x Addressable Gen 2 headers, 1 x Aura RGB header, 1 x Thunderbolt™ (USB4®) header support
Special Features ASUS TUF PROTECTION (DIGI+ VRM 8+2+1 stages, SafeSlot Core+, Stainless-Steel Back I/O); ASUS Q-Design (M.2 Q-Latch, Q-LED, Q-Slot); Thermal Solution (M.2 heatsink, VRM heatsink)
Software Features Armoury Crate (Aura Sync, Fan Xpert 2+, Two-Way AI Noise Cancelation); AI Suite 3; TUF GAMING CPU-Z; DTS Audio Processing
Form Factor micro-ATX Form Factor; 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
