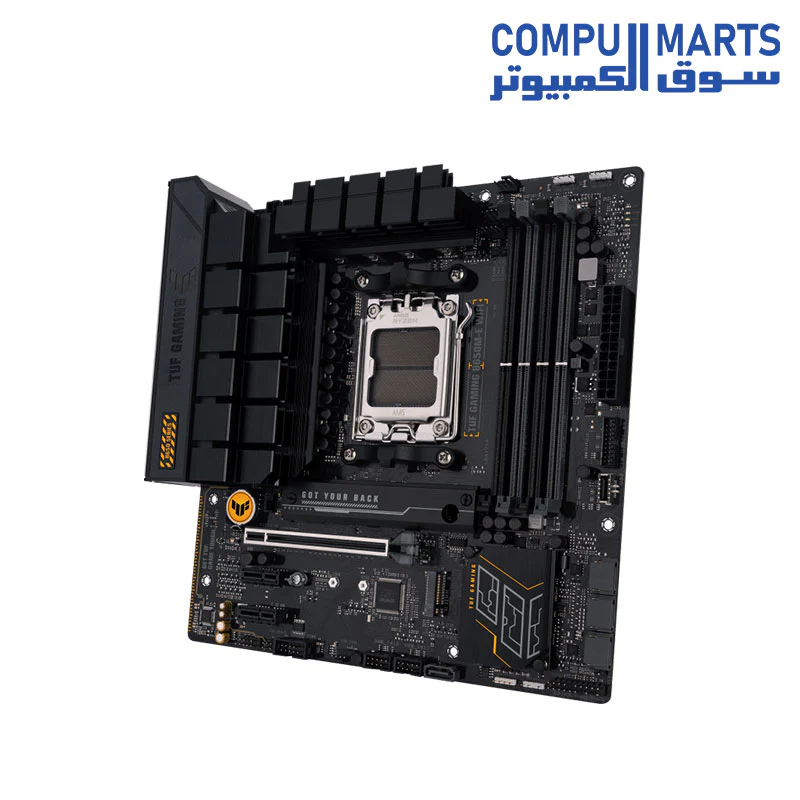

ASUS TUF GAMING B650M-E Wifi DDR5 Motherboard
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B650M-E WIFI |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO™, OptiMem II |
| Graphics | 2 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Storage | 1 x M.2 (PCIe 5.0 x4), 1 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s (Supports RAID 0/1/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax) 1x1, Bluetooth® v5.2 |
| Rear USB Ports | 2 x USB 3.2 Gen 2 (1 Type-A + 1 Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 Header (2 ports), 2 x USB 2.0 Headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Audio Shielding, Premium Capacitors |
| Back Panel I/O | DP, HDMI, Wi-Fi, 2.5Gb LAN, Audio Jacks, BIOS FlashBack™, PS/2 Combo Port |
| Special Features | ASUS TUF Protection, Q-Design (Q-LED, Q-Slot, M.2 Q-Latch), M.2 & VRM Heatsinks, Aura Sync |
| Form Factor | micro-ATX (9.6 inch x 9.6 inch) |
| OS Support | Windows 11, Windows 10 64-bit |
$53.82
Original: $179.41
-70%ASUS TUF GAMING B650M-E Wifi DDR5 Motherboard—
$179.41
$53.82
Description
| Category | Specification Details |
|---|---|
| Model | ASUS TUF GAMING B650M-E WIFI |
| CPU Support | AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 4 x DIMM, Max. 192GB, DDR5 7600+(OC) to 4800, ECC/Non-ECC, Un-buffered, AMD EXPO™, OptiMem II |
| Graphics | 2 x DisplayPort 1.4 (8K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots |
| Storage | 1 x M.2 (PCIe 5.0 x4), 1 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s (Supports RAID 0/1/10) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11ax) 1x1, Bluetooth® v5.2 |
| Rear USB Ports | 2 x USB 3.2 Gen 2 (1 Type-A + 1 Type-C), 2 x USB 3.2 Gen 1 (Type-A), 4 x USB 2.0 |
| Front USB Ports | 1 x USB 3.2 Gen 1 (Type-C), 1 x USB 3.2 Gen 1 Header (2 ports), 2 x USB 2.0 Headers (4 ports) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio, Audio Shielding, Premium Capacitors |
| Back Panel I/O | DP, HDMI, Wi-Fi, 2.5Gb LAN, Audio Jacks, BIOS FlashBack™, PS/2 Combo Port |
| Special Features | ASUS TUF Protection, Q-Design (Q-LED, Q-Slot, M.2 Q-Latch), M.2 & VRM Heatsinks, Aura Sync |
| Form Factor | micro-ATX (9.6 inch x 9.6 inch) |
| OS Support | Windows 11, Windows 10 64-bit |
