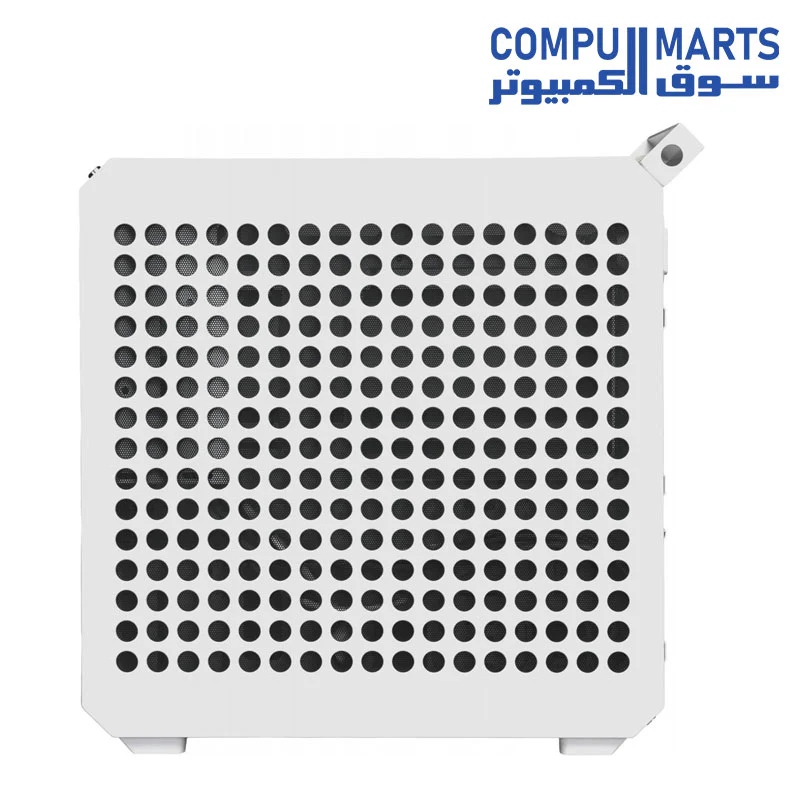

Cooler Master QUBE 500 Flatpack Mid-Tower
| Category | Specification Details |
|---|---|
| Brand | Cooler Master |
| Model | Q500-WGNN-S00 - Q500-KGNN-S00 |
| Type | ATX Mid Tower |
| Color | White - Black |
| Case Material | Exterior: Steel, Plastic, TG; Left Side Panel: Grey TG + Steel |
| Power Supply Mounted | Front, Top, Bottom, Right side |
| Motherboard Compatibility | ITX / Micro ATX / ATX / E-ATX (Width up to 296mm w/ SFX PSU, up to 273 w/ ATX PSU) |
| Internal 3.5" Drive Bays | Max. 4x 3.5” HDD |
| Internal 2.5" Drive Bays | Max. 3x 2.5” SSD |
| Expansion Slots | 7 |
| Front Ports | USB Ports: 2x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen2 x 2 Type C; Audio In / Out: 3.5mm Combo x 1; Fans/Lighting: Fan Speed Control Button, ARGB Control Button |
| Fan Options | Front: 120/140mm x 1 (x2 if PSU is mounted in bottom); Top: 120/140mm x 2; Rear: 120mm x 1; Bottom: 120/140mm x 2; Left side: 120/140mm x 2 |
| Pre-installed Fan(s) | Rear: 120mm x 1 (1800 rpm) SF Black PWM |
| Radiator Options | Front: 120/140 mm (240/280mm w/ PSU in bottom); Top: 120/140/240/280mm (280mm can be used within 53mm thickness); Rear: 120mm; Bottom: 120/140/240/280mm; Left side: 120/140/240/280mm |
| Max GPU Length | 365 mm |
| Max CPU Cooler Height | 164mm~172mm (Remove the water cooling bracket) |
| Max PSU Length | 173mm to first GPU slot, 216 maximum space (w/o cable management space), 332mm space mounted in bottom (w/o cable management space) |
| Dimensions (H x W x D) | Incl. Protrusions: 406 x 231 x 415mm / 18.11 x 9.09 x 16.33"; Excl. Protrusions: 380 x 231 x 381mm / 14.96 x 9.09 x 15.00" |
| Weight | 20.76 lbs. |
| Features | Introducing the all-new Qube 500, a highly customizable flatpack case from Cooler Master that sets your creativity and personal style free. The QUBE 500 comes flat packed and disassembled, designed to offer a fun, easy, and satisfying build experience that starts from scratch. Plus, The Qube 500's innovative packaging greatly reduces its transportation carbon footprint and overall environmental costs. From dual 280mm radiator slots and 8 fan locations to EATX support, this case has all you need for a moder build all at a super compact size of just 33L. |
| Volume | 33.44 L |
| Cable Routing space | Behind MB Tray: 29~32mm |
| Gem Mini | Black x 1 |
| Accessory Hook | Black x 1 |
| Dust Filters | N/A |
