GAMDIAS HELIOS M1-750B 80 Plus Bronze
| Category | Specification Details |
|---|---|
| Model | GAMDIAS HELIOS M1-750B |
| Total Power | 750W (80 Plus Bronze Certified) |
| Efficiency | Up to 85% Efficiency | APFC with 0.99 PF Value |
| Form Factor | ATX12V v2.4 (Supports C6/C7 Power States) |
| Dimensions | 140 x 150 x 86 mm |

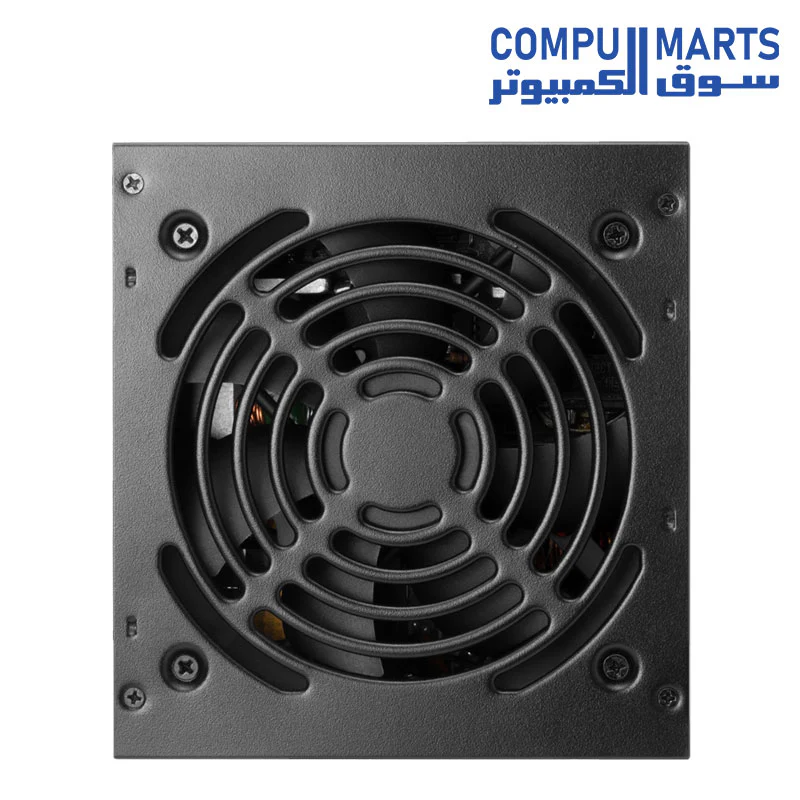

| Cooling System | 120mm Hydraulic Bearing Fan (Automatic Speed Optimization) |
| Protection Suite | OVP, UVP, OPP, SCP, OCP |
| Main Connectors | 1x 24-Pin (20+4) | 1x CPU 8-Pin (4+4) |
| GPU & Storage Connectors | 4x PCI-E 8-Pin (6+2) | 5x SATA | 3x Molex |
| Cable Design | Non-Modular | Black Flat Cables |

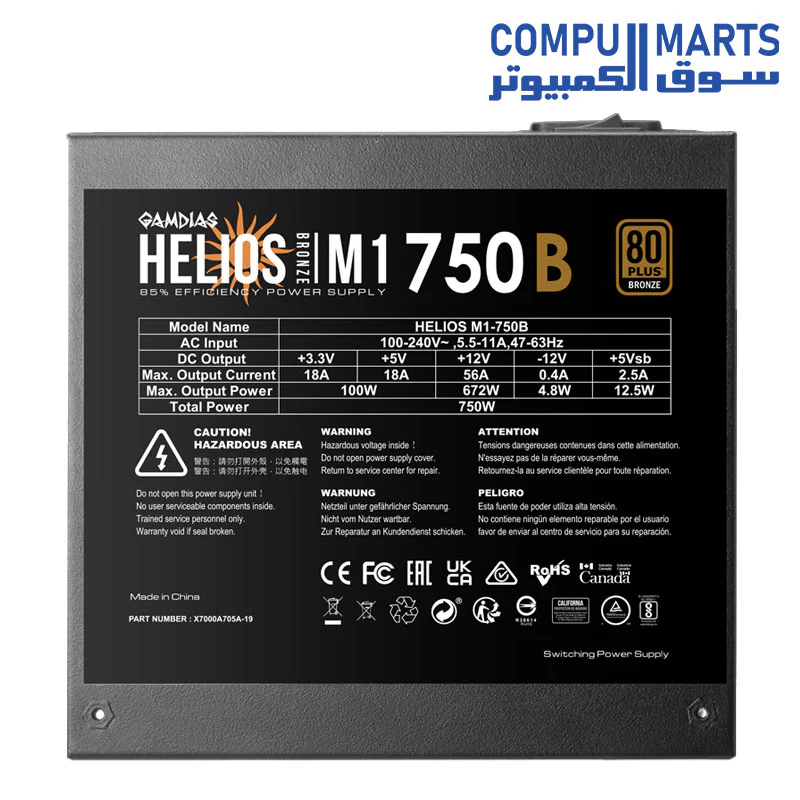

| AC Input | 100-240V / 5.5-11A / 47-63Hz |
| DC Output (+12V Rail) | 56A / 672W Max Output |
$17.18
Original: $57.26
-70%GAMDIAS HELIOS M1-750B 80 Plus Bronze—
$57.26
$17.18
Description
| Category | Specification Details |
|---|---|
| Model | GAMDIAS HELIOS M1-750B |
| Total Power | 750W (80 Plus Bronze Certified) |
| Efficiency | Up to 85% Efficiency | APFC with 0.99 PF Value |
| Form Factor | ATX12V v2.4 (Supports C6/C7 Power States) |
| Dimensions | 140 x 150 x 86 mm |
| Cooling System | 120mm Hydraulic Bearing Fan (Automatic Speed Optimization) |
| Protection Suite | OVP, UVP, OPP, SCP, OCP |
| Main Connectors | 1x 24-Pin (20+4) | 1x CPU 8-Pin (4+4) |
| GPU & Storage Connectors | 4x PCI-E 8-Pin (6+2) | 5x SATA | 3x Molex |
| Cable Design | Non-Modular | Black Flat Cables |
| AC Input | 100-240V / 5.5-11A / 47-63Hz |
| DC Output (+12V Rail) | 56A / 672W Max Output |
