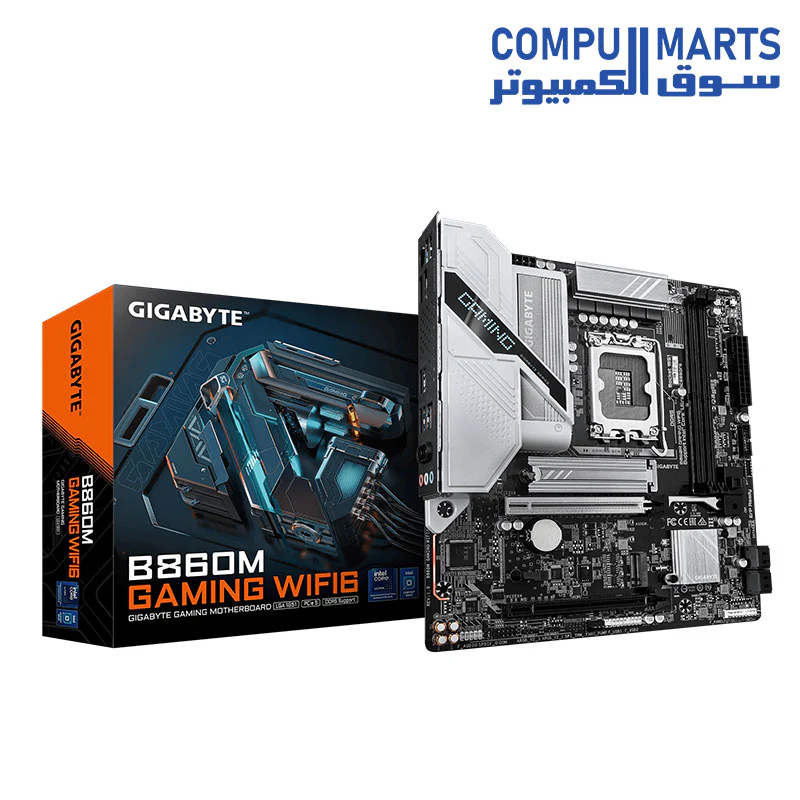

GIGABYTE B860M Gaming WiFi6 1.0 Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | 2 x DDR5 DIMM sockets (Up to 128GB); Supports up to DDR5 9066(O.C.) / 6400 / 5600 MT/s; Dual channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE; 802.11a/b/g/n/ac/ax; Dual Band 2.4/5 GHz; Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2 - CPU); 1 x M.2 (PCIe 4.0 x4/x2 - Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 |
| USB | Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0; Internal: 1 x USB Type-C® (Gen 1), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 3 x ARGB Gen2 headers, Q-Flash Plus button, CPU/System/Pump fan headers, TPM header, Serial port header |
| Back Panel | PS/2 Port, HDMI, DisplayPort, 2 x Antenna connectors, RJ-45, 3 x Audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| OS Support | Windows 11 64-bit (NPU support), Windows 10 64-bit |
$143.14
GIGABYTE B860M Gaming WiFi6 1.0 Motherboard—
$143.14
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | 2 x DDR5 DIMM sockets (Up to 128GB); Supports up to DDR5 9066(O.C.) / 6400 / 5600 MT/s; Dual channel; XMP Support |
| Onboard Graphics | 1 x HDMI 2.1 (4096x2160@60Hz); 1 x DisplayPort 2.1 (3840x2160@144Hz) |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Realtek® Wi-Fi 6 RTL8851BE; 802.11a/b/g/n/ac/ax; Dual Band 2.4/5 GHz; Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 1 x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 1 x M.2 (PCIe 5.0 x4/x2 - CPU); 1 x M.2 (PCIe 4.0 x4/x2 - Chipset); 4 x SATA 6Gb/s; RAID 0, 1, 5, 10 |
| USB | Rear: 3 x USB 3.2 Gen 1, 3 x USB 2.0; Internal: 1 x USB Type-C® (Gen 1), 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O | 3 x ARGB Gen2 headers, Q-Flash Plus button, CPU/System/Pump fan headers, TPM header, Serial port header |
| Back Panel | PS/2 Port, HDMI, DisplayPort, 2 x Antenna connectors, RJ-45, 3 x Audio jacks |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| OS Support | Windows 11 64-bit (NPU support), Windows 10 64-bit |
