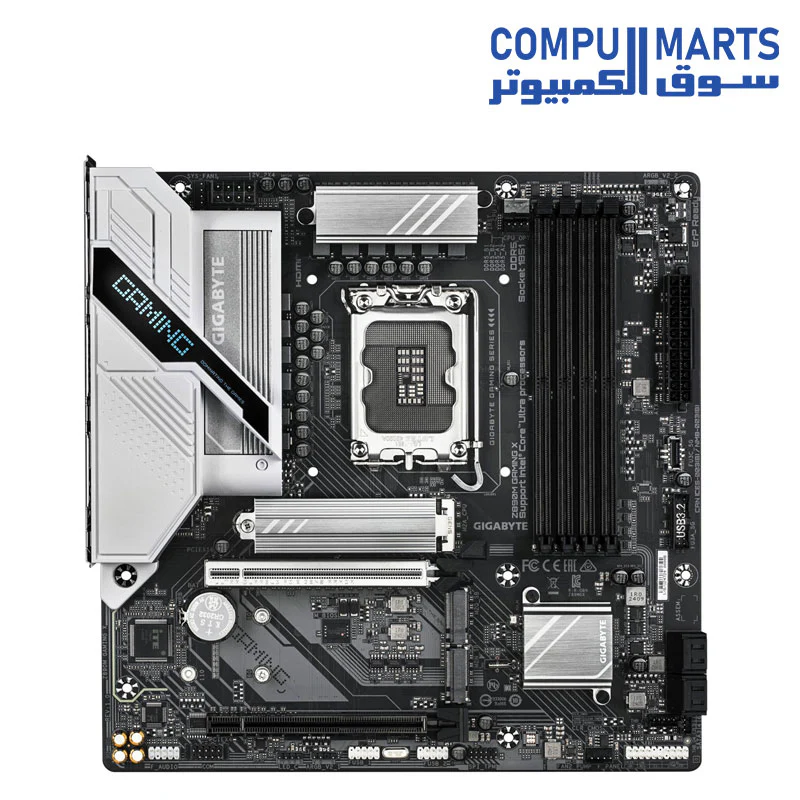

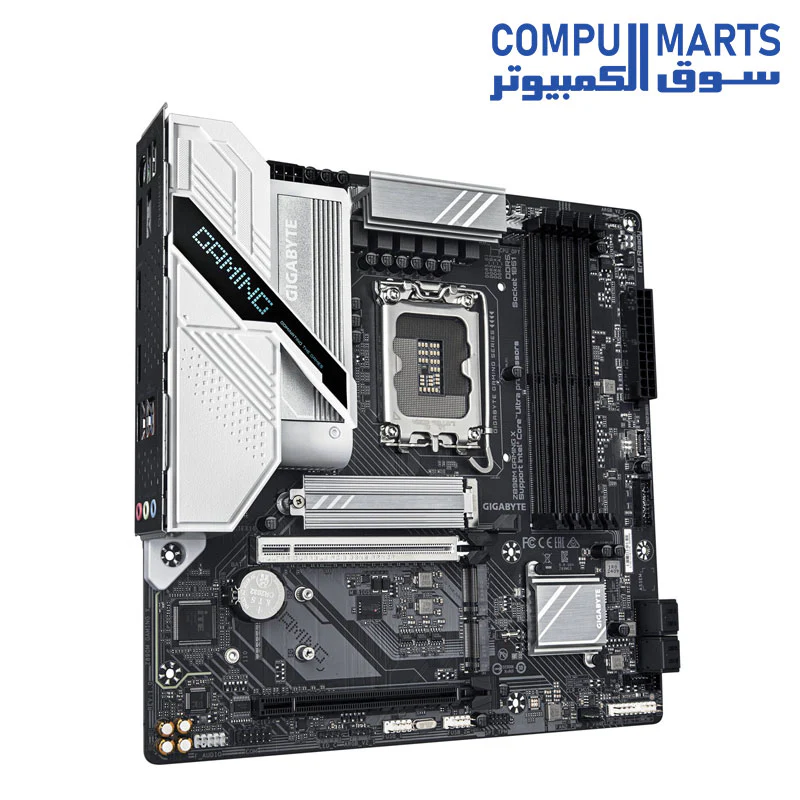

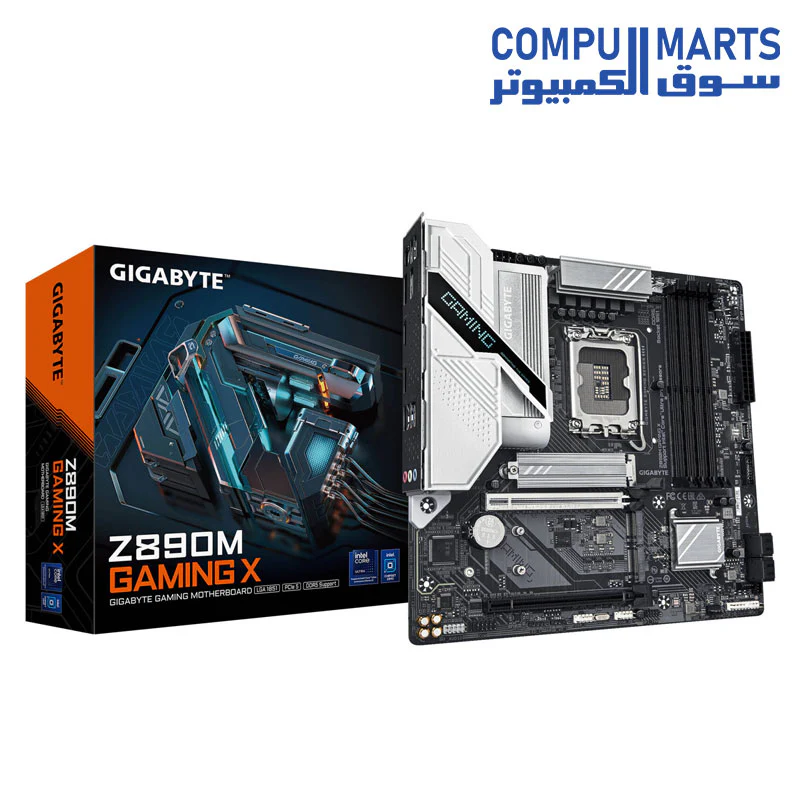

GIGABYTE Z890M Gaming X Micro ATX LGA 1851 Motherbaord, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory
GIGABYTE Z890M Gaming X Micro ATX LGA 1851 Motherbaord, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory
| Category | Specification Details |
|---|---|
| Brand & Model | Gigabyte Z890M Gaming X |
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | DDR5 up to 9200(O.C); 4x DIMM sockets (max 256GB); Dual-channel; ECC/Non-ECC Un-buffered; XMP Support |
| Onboard Graphics | 1x HDMI 2.1 (4096x2160 @60Hz); 2x DisplayPort 2.1 (4096x2304 @60Hz); Triple display support |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU); 1x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 3x M.2 (PCIe 5.0/4.0); 4x SATA 6Gb/s; Support for RAID 0, 1, 5, 10 |
| USB Ports | 1x USB-C (3.2 Gen 1); 5x USB 3.2 Gen 1; 2x USB 2.0/1.1; 4x USB 2.0/1.1 via internal headers |
| Internal I/O | Power/Fan/RGB headers, M.2, SATA, Thunderbolt™ header, TPM header, Clear CMOS jumper |

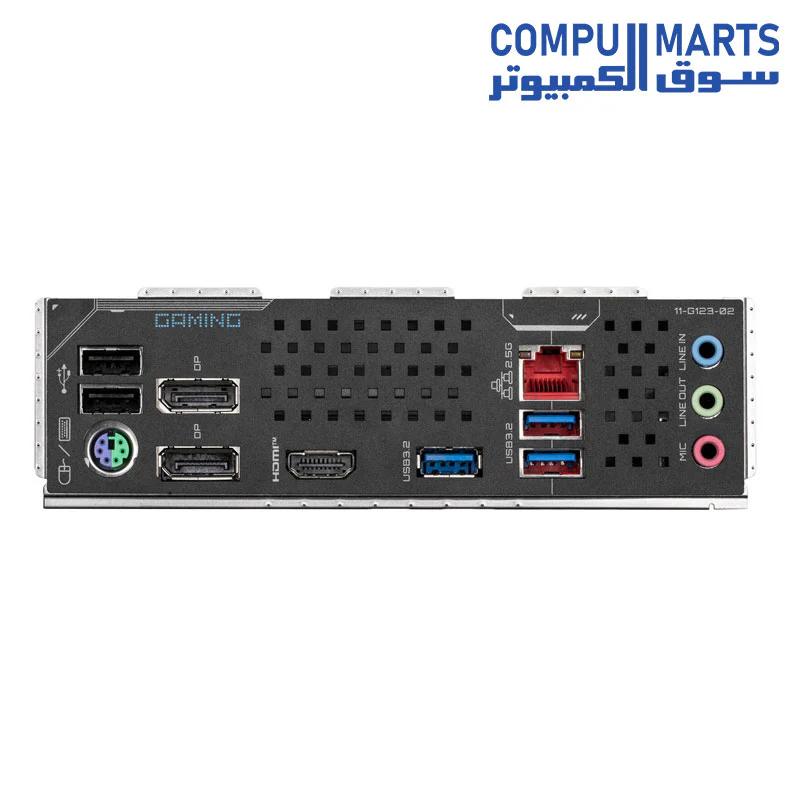

| Back Panel I/O | PS/2, HDMI, 2x DP, 3x USB 3.2 Gen 1, 2x USB 2.0, RJ-45, 3x Audio Jacks |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Smart Backup |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
$188.95
GIGABYTE Z890M Gaming X Micro ATX LGA 1851 Motherbaord, Intel Z890 Chipset, 4x DDR5 DIMM Slots, Up to 256GB Max Memory—
$188.95
Description
| Category | Specification Details |
|---|---|
| Brand & Model | Gigabyte Z890M Gaming X |
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors; L3 cache varies with CPU |
| Chipset | Intel® Z890 Express Chipset |
| Memory | DDR5 up to 9200(O.C); 4x DIMM sockets (max 256GB); Dual-channel; ECC/Non-ECC Un-buffered; XMP Support |
| Onboard Graphics | 1x HDMI 2.1 (4096x2160 @60Hz); 2x DisplayPort 2.1 (4096x2304 @60Hz); Triple display support |
| Audio | Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Expansion Slots | 1x PCIe 5.0 x16 (CPU); 1x PCIe 4.0 x4 (Chipset) |
| Storage Interface | 3x M.2 (PCIe 5.0/4.0); 4x SATA 6Gb/s; Support for RAID 0, 1, 5, 10 |
| USB Ports | 1x USB-C (3.2 Gen 1); 5x USB 3.2 Gen 1; 2x USB 2.0/1.1; 4x USB 2.0/1.1 via internal headers |
| Internal I/O | Power/Fan/RGB headers, M.2, SATA, Thunderbolt™ header, TPM header, Clear CMOS jumper |
| Back Panel I/O | PS/2, HDMI, 2x DP, 3x USB 3.2 Gen 1, 2x USB 2.0, RJ-45, 3x Audio Jacks |
| Unique Features | GIGABYTE Control Center (GCC), Q-Flash, Smart Backup |
| Form Factor | Micro ATX; 24.4cm x 24.4cm |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
