Motherboard Gigabyte B660M GAMING AC DDR4 intel

Motherboard Gigabyte B660M GAMING AC DDR4 intel



Motherboard Gigabyte B660M GAMING AC DDR4 intel

    • Supports 12th Gen Intel Core Series Processors

    • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

    • 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink

    • Fast 2.5 GbE GAMING LAN with Bandwidth Management

    • WIFI 802.11ac & BT with AERO Antenna

    • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2

    • Rear SuperSpeed USB 3.2 Gen 1 TYPE-C for Fast and Versatile Connections

    • High Quality Audio Capacitors and Audio Noise Guar


Intel B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, 802.11ac Wireless, Rear USB 3.2 Gen 1 Type-C, RGB FUSION 2.0, Q-Flash Plus



Intel WIFI 802.11ac & BT

D-Sub

HDMI

DisplayPort

Rear USB 3.2 Gen 1 Type-C

2.5 GbE LAN

2PCIe 4.0 x4 M.2 Connectors

Audio Solutions

  • 8-ch HD Audio

  • Audio Noise Guard

  • High-End Audio Capacitors

Reboot System Button

Solid Pin Power Connectors

8 pin CPU Power Connector

6+2+1 Phases Hybrid Digital VRM Design

  • 50A Low RDS(on) MOSFETs

  • PCIe 4.0 Ready PCB

  • Premium Choke and Capacitor

Supports 12th Gen. Intel Core Processors

Dual Channel DDR4, 2 DIMMs

4*SATA 6Gb/s

Full PCI Express 4.0 Design

PCIe 4.0 x16 slot

PCIe 4.0 x4 M.2 Connectors

    RGB FUSION 2.0

    Addressable LED Header

    RGB LED Header

    Q-FLASH Plus Onboard Button



    PERFORMANCE

    Hybrid Digital VRM Design

    PCIe 4.0 Design

    DDR4 XMP

    Smart Fan 6

    Hybrid Cores Optimization

    6+2+1 Phases Hybrid Power Design




    Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.

    6+2+1 Phases Low RDS(on) MOSFETs

    Solid capacitors to improve transient response and minimize oscillation

    8-pin Solid Pin CPU Power Connector

    CONNECTIVITY

    2x PCIe 4.0 M.2 Slots

    802.11ac WIFI

    2.5 GbE LAN

    USB 3.2 Gen 1 Type-C

    Hi-Fi Audio




    PERSONALIZATION


    RGB FUSION

    UEFI BIOS

    EASY TUNE

    System Information Viewer


    RGB FUSION 2.0


    B660 motherboards feature RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.


     Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.









    ULTRA DURABLE

    Q-Flash Plus


    Solid Pin






    • CPU

    • LGA1700 socket: Support for 13th Generation Intel Core Processors and 12th Generation Intel Core, Pentium Gold and Celeron Processors

    • L3 cache varies with CPU

    • Chipset : Intel B660 Express Chipset

    • Memory

    • Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MT/s memory modules

    • 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

    • Dual channel memory architecture

    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    • Support for Extreme Memory Profile (XMP) memory modules


    • Onboard Graphics

    • Integrated Graphics Processor-Intel HD Graphics support:

    • 1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz

    • 1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

    •  Support for HDMI 2.1 version and HDCP 2.3.

    •  Support native HDMI 2.1 TMDS compatible ports.

    • 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    • * Support for DisplayPort 1.2 version and HDCP 2.3

    • Support for up to 3 displays at the same time

    • Audio

    • Realtek Audio CODEC

    • High Definition Audio

    • 2/4/5.1/7.1-channel

    •  To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.

    • LAN

    • Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    • Wireless Communication module

    • Intel Wi-Fi AC 3168 (PCB rev. 1.0)

    • WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

    • BLUETOOTH 4.2

    • Support for 11ac wireless standard and up to 433 Mbps data rate

    • Intel Wi-Fi AC 9560 (PCB rev. 1.1)

    • WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

    • BLUETOOTH 5.1

    • Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.

       Actual data rate may vary depending on environment and equipment.

    • Expansion Slots

    • 1 x PCI Express x16 slot, running at x16

    • (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

    • 1 x PCI Express x1 slot

    • (The PCIEX1 slot conforms to PCI Express 3.0 standard.)

    • Storage Interface

      CPU:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
      Chipset:

    • 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    • 4 x SATA 6Gb/s connectors
      Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
      Intel Optane Memory Ready
       System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset



    • USB

      Chipset:

    • 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

    • 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    • 2 x USB 2.0/1.1 ports on the back panel
      Chipset+2 USB 2.0 Hubs:

    • 4 x USB 2.0/1.1 ports available through the internal USB headers

    • Internal I/O Connectors

    • 1 x 24-pin ATX main power connector

    • 1 x 8-pin ATX 12V power connector

    • 1 x CPU fan header

    • 3 x system fan headers

    • 1 x addressable LED strip header

    • 1 x RGB LED strip header

    • 2 x M.2 Socket 3 connectors

    • 4 x SATA 6Gb/s connectors

    • 1 x front panel header

    • 1 x front panel audio header

    • 1 x USB 3.2 Gen 1 header

    • 2 x USB 2.0/1.1 headers

    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GCTPM2.0 SPI 2.0 module only)

    • 1x serial port header

    • 1 x S/PDIF Out header

    • 1 x Q-Flash Plus button

    • 1 x reset button

    • 1 x reset jumper

    • 1 x Clear CMOS jumper

    • All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V  24W.

    • Back Panel Connectors

    • 2 x USB 2.0/1.1 ports

    • 1 x PS/2 keyboard/mouse port

    • 2 x SMA antenna connectors (1T1R)

    • 1 x D-Sub port

    • 1 x HDMI port

    • 1 x DisplayPort

    • 3 x USB 3.2 Gen 1 ports

    • 1 x USB Type-C port, with USB 3.2 Gen 1 support

    • 1 x RJ-45 port

    • 3 x audio jacks



    • I/O Controller : iTE I/O Controller Chip

    • H/W Monitoring

    • Voltage detection

    • Temperature detection

    • Fan speed detection

    • Fan fail warning

    • Fan speed control

    •  Whether the fan speed control function is supported will depend on the cooler you install.

    • BIOS

    • 1 x 256 Mbit flash

    • Use of licensed AMI UEFI BIOS

    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    • Unique Features

    • Support for APP Center

    •  Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    • BIOS

    • EasyTune

    • RGB Fusion

    • Smart Backup

    • System Information Viewer

    • Support for Q-Flash Plus

    • Support for Q-Flash

    • Support for Xpress Install



    • Bundled Software

    • Norton Internet Security (OEM version)

    • Realtek Gaming LAN Bandwidth Control Utility



    • Operating System

    • Support for Windows 11 64-bit

    • Support for Windows 10 64-bit



    • Form Factor : Micro ATX Form Factor; 24.4cm x 22.5cm

    $100.20
    Motherboard Gigabyte B660M GAMING AC DDR4 intel—
    $100.20
    Product image 1
    Product image 2

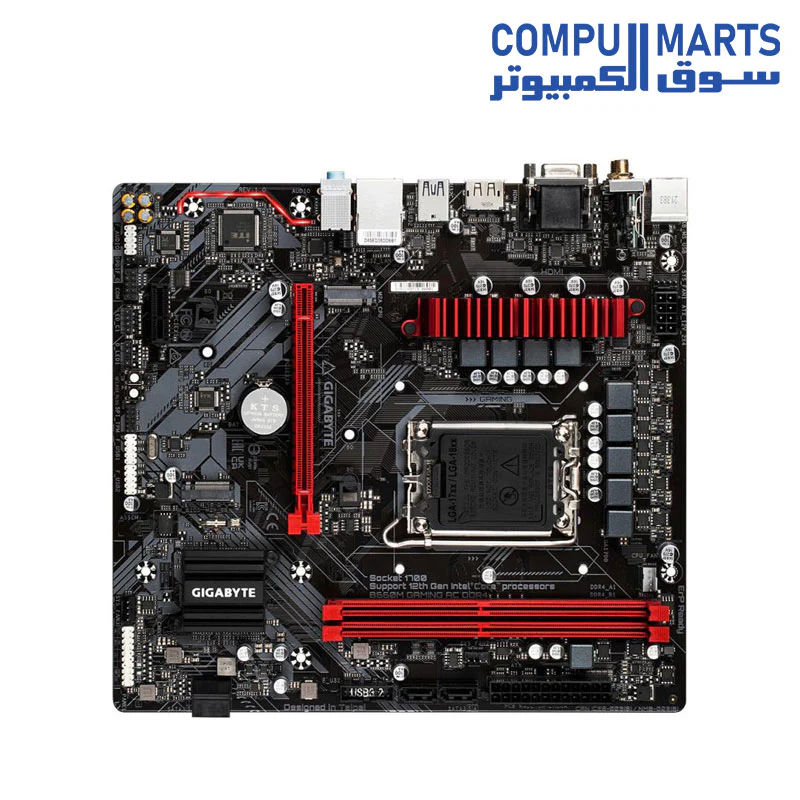

    Product image 3

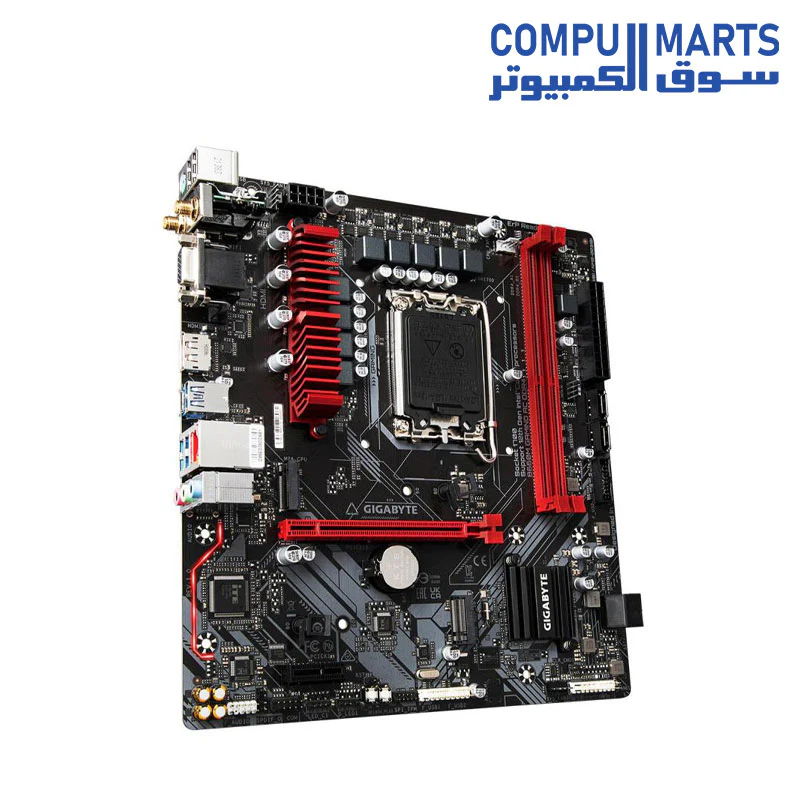

    Product image 4
