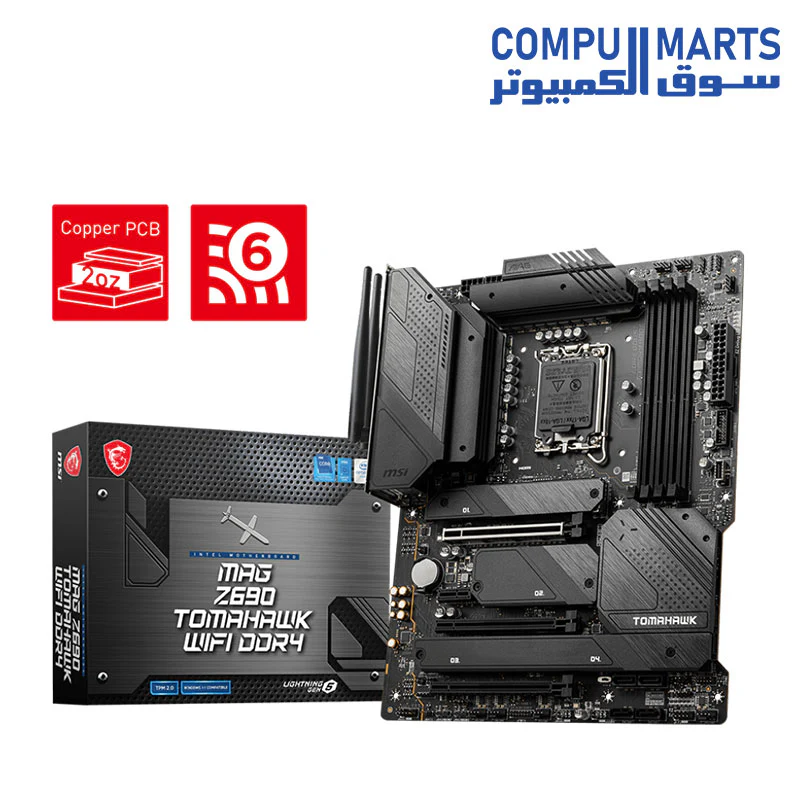

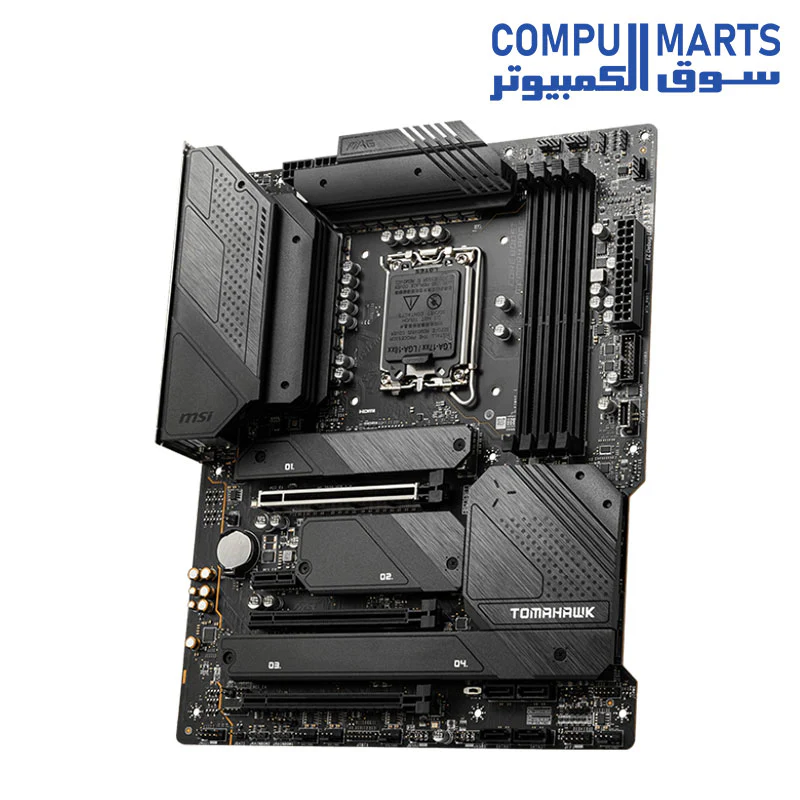

MSI MAG Z690 TOMAHAWK WIFI DDR4 MOTHERBOARD

 MSI MAG Z690 TOMAHAWK WIFI DDR4 MOTHERBOARD





PREMIUM HARDWARE DESIGN

With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.



THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE

With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards.

CONNECTIVITY

MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users

SURFACING WITH THE REAL MU-MIMO TECHNOLOGY

The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way

OPTIMIZE ONLINE GAMING TRAFFIC FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI LAN MANAGER

• - Automatically prioritizes games above other applications -

• - Allows you to change applications' traffic priority -

• - Allows you to customize bandwidth for each application -

• Supports 12th/ 13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket

• Supports DDR4 Memory, up to 5200(OC) MHz

• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works

• 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

• Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs

• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1

• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience

• Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire



• SOCKET 1700

• CHIPSET

  Intel Z690 Chipset

• MEMORY CHANNEL

  Dual



• DIMM SLOTS :4

• MAX MEMORY (GB) :128

• PCI-E X16 :3

• PCI-E X1:  1

• SATAIII :  6

• M.2 SLOT  :4

• RAID

  0/1/5/10

• WIFI & BLUETOOTH

  Intel Wi-Fi 6 module

• USB 3.2 PORTS (FRONT)

  1(Gen 2, Type C), 2(Gen 1, Type A)

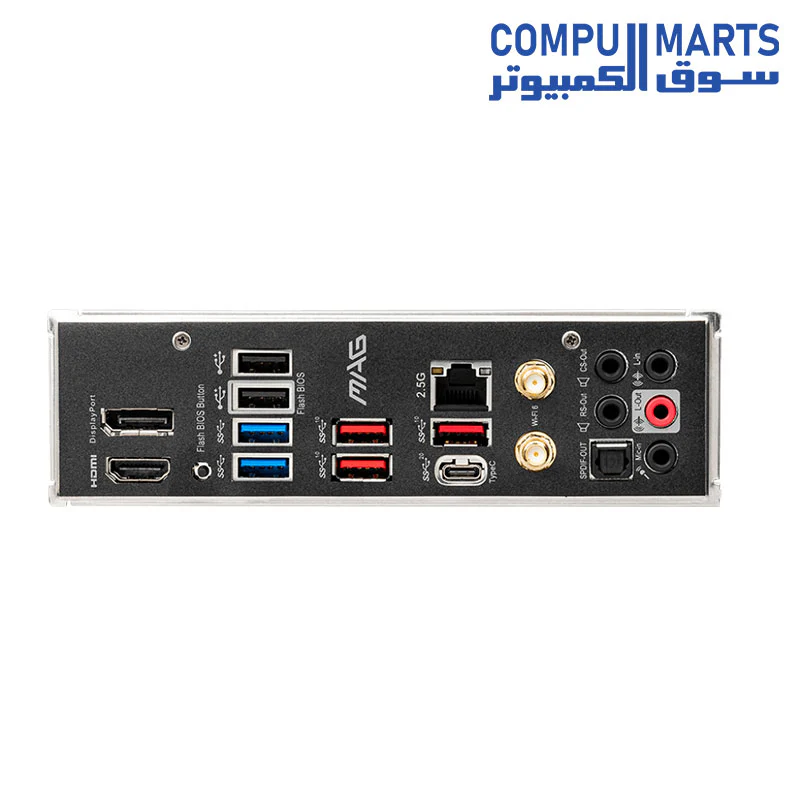

• USB 3.2 PORTS (REAR)

  1(Gen 2x2, Type C), 3(Gen 2, Type A), 2(Gen 1, Type A)

• USB 2.0 PORTS (FRONT): 4

• USB 2.0 PORTS (REAR) : 2

• AUDIO PORTS (REAR)

  5+ Optical S/PDIF (Realtek ALC4080 Codec)




• DISPLAYPORT  :1

• HDMI   :1

• DIRECTX :12

• CROSSFIRE : Y

• OPERATING SYSTEM

  Support for Windows 11 64-bit, Windows 10 64-bit

• FORM FACTOR

  ATX




• DIMENSION

  12 in. x 9.6 in. (30.5 cm x 24.4 cm)
