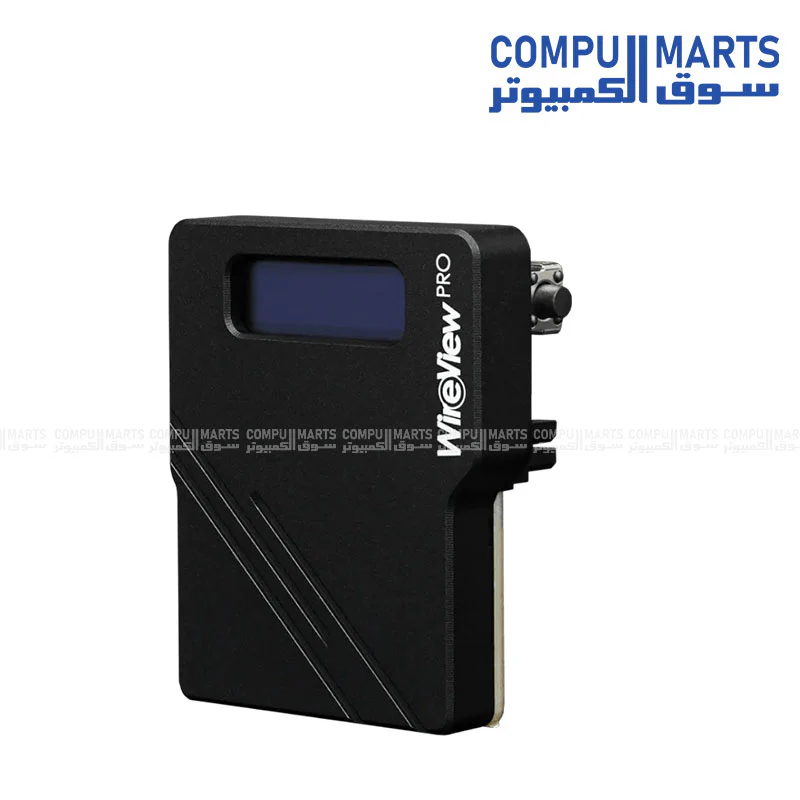

Thermal Grizzly WireView 90 Pro GPU 1x12VHPWR Reverse – GPU Power Monitoring Tool
| Category | Specification Details |
|---|---|
| Product Name | WireView GPU Pro – 1×12VHPWR 90° (Normal) |
| Brand | Thermal Grizzly |
| Connector Type | 12VHPWR (16-pin: 12 power/ground + 4 sensor pins) |
| Orientation | 90° adapter (routes cable downward toward case floor) |
| Max Power Support | Up to 600W |
| Display Type | OLED screen |
| Recorded Metrics | Power (W), Voltage (V), Current (A), Min/Max Power, 60s Avg (RAVG), Energy (Wh), Temp (°C) |
| Internal Sensors | 2 temperature sensors at power connectors |
| External Sensors | 2× 10K NTC (5 cm & 20 cm cables included) |
| Safety Features | Acoustic alarm (temp, current limit, loose cable) |
| Cable Detection | Detects 150W / 300W / 450W / 600W cable specification |
| Collaboration | Developed with Jon “elmor” Sandström |
| Note | Measures power via 12VHPWR connector only (not PCIe slot) |
Select Direction
From $64.89
Thermal Grizzly WireView 90 Pro GPU 1x12VHPWR Reverse – GPU Power Monitoring Tool—
$64.89
Description
| Category | Specification Details |
|---|---|
| Product Name | WireView GPU Pro – 1×12VHPWR 90° (Normal) |
| Brand | Thermal Grizzly |
| Connector Type | 12VHPWR (16-pin: 12 power/ground + 4 sensor pins) |
| Orientation | 90° adapter (routes cable downward toward case floor) |
| Max Power Support | Up to 600W |
| Display Type | OLED screen |
| Recorded Metrics | Power (W), Voltage (V), Current (A), Min/Max Power, 60s Avg (RAVG), Energy (Wh), Temp (°C) |
| Internal Sensors | 2 temperature sensors at power connectors |
| External Sensors | 2× 10K NTC (5 cm & 20 cm cables included) |
| Safety Features | Acoustic alarm (temp, current limit, loose cable) |
| Cable Detection | Detects 150W / 300W / 450W / 600W cable specification |
| Collaboration | Developed with Jon “elmor” Sandström |
| Note | Measures power via 12VHPWR connector only (not PCIe slot) |
