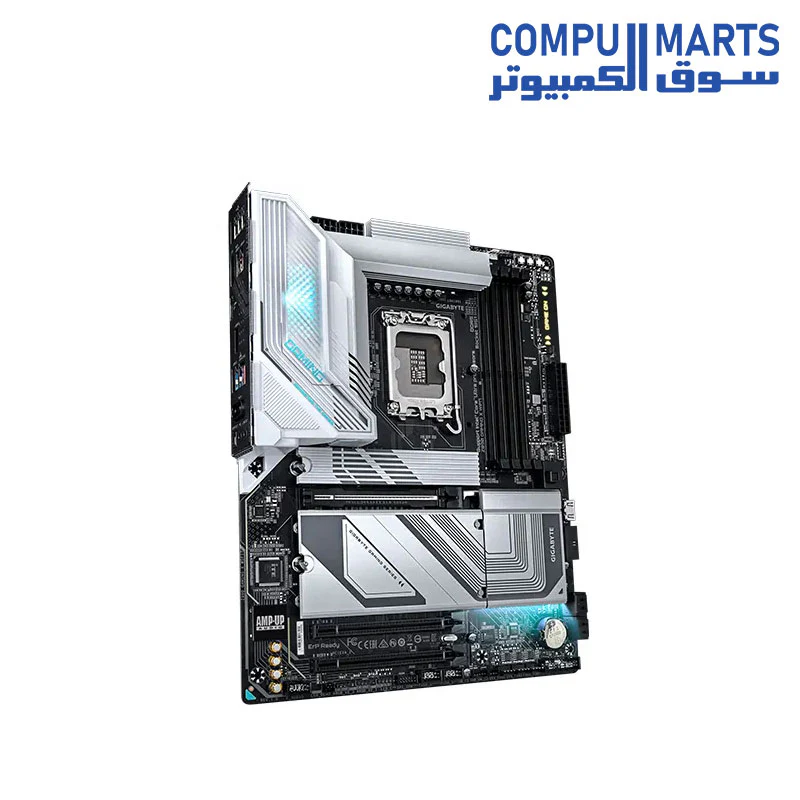

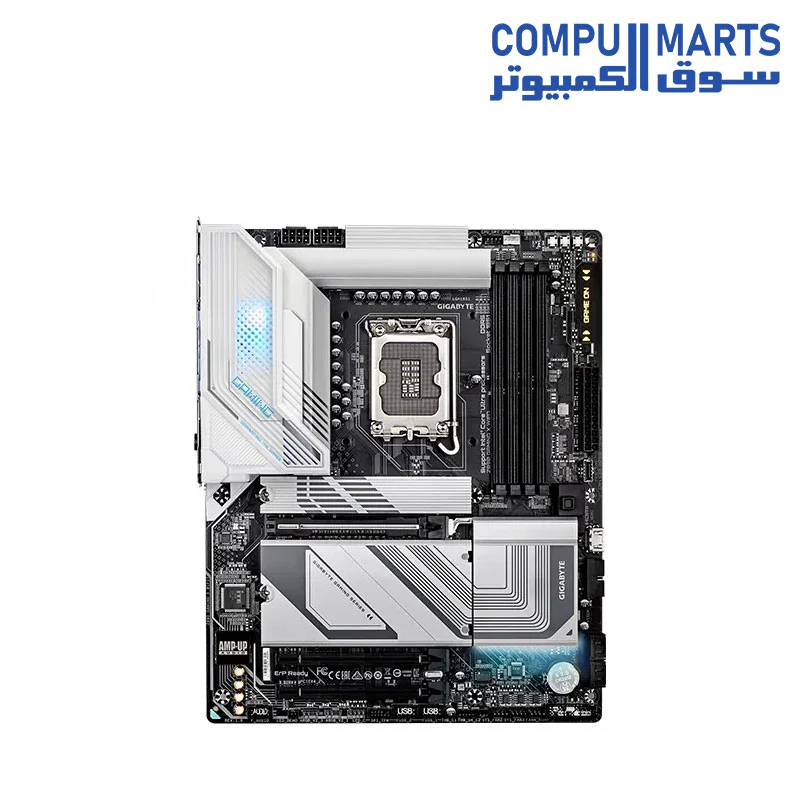

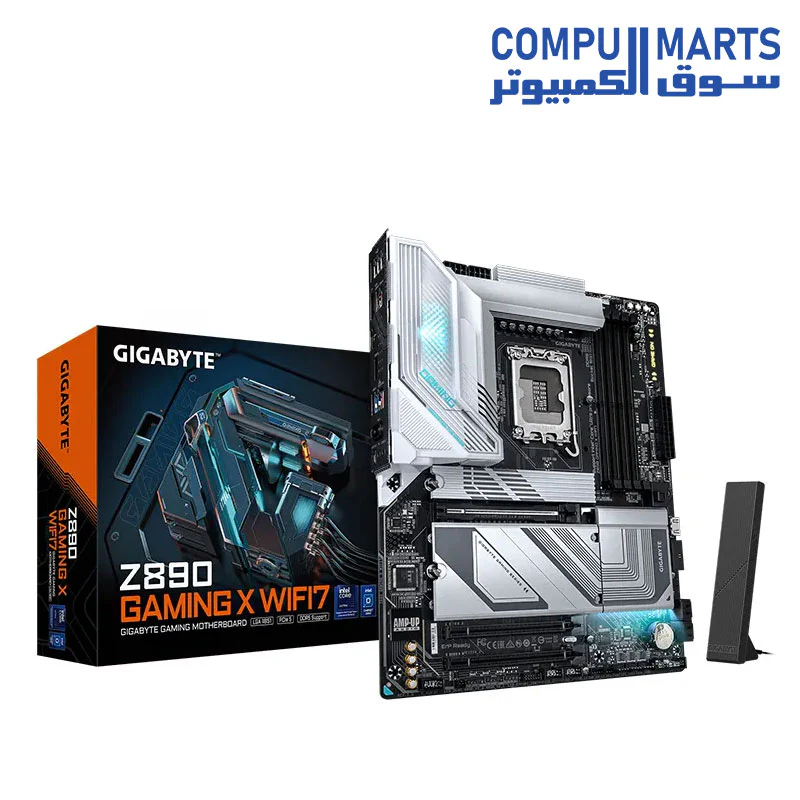

GIGABYTE Z890 GAMING X WIFI7 4xDDR5 LGA1851 ATX Motherboard
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support up to 9200(O.C); Dual Channel architecture; XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1), 1 x DisplayPort (DP 2.1), 1 x Front HDMI (1.4); Supports up to 3 displays |
| Audio | Realtek® High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Wi-Fi 7 (MediaTek or Realtek); 2.4/5/6 GHz bands; Bluetooth 5.4; 160MHz wireless standard |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage | 1 x M.2 (PCIe 5.0 x4); 3 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; NVMe/SATA RAID 0/1/5/10 support |
| USB (Back Panel) | 1 x USB4® Type-C; 2 x USB 3.2 Gen 2 Type-A; 3 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C (Gen 2); 2 x Thunderbolt™ headers; 3 x Addressable RGB Gen2; 1 x Power/Reset buttons |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash Plus; Smart Backup |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
$265.30
GIGABYTE Z890 GAMING X WIFI7 4xDDR5 LGA1851 ATX Motherboard—
$265.30
Description
| Category | Specification Details |
|---|---|
| CPU Support | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| Chipset | Intel® Z890 Express Chipset |
| Memory | 4 x DDR5 DIMM (Up to 256 GB); Support up to 9200(O.C); Dual Channel architecture; XMP & CUDIMM support |
| Onboard Graphics | 1 x USB4® Type-C (DP 2.1), 1 x DisplayPort (DP 2.1), 1 x Front HDMI (1.4); Supports up to 3 displays |
| Audio | Realtek® High Definition Audio; 2/4/5.1/7.1-channel; S/PDIF Out support |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Wi-Fi 7 (MediaTek or Realtek); 2.4/5/6 GHz bands; Bluetooth 5.4; 160MHz wireless standard |
| Expansion Slots | 1 x PCIe 5.0 x16 (CPU); 2 x PCIe 4.0 x16 (running at x4) (Chipset) |
| Storage | 1 x M.2 (PCIe 5.0 x4); 3 x M.2 (PCIe 4.0 x4); 4 x SATA 6Gb/s; NVMe/SATA RAID 0/1/5/10 support |
| USB (Back Panel) | 1 x USB4® Type-C; 2 x USB 3.2 Gen 2 Type-A; 3 x USB 3.2 Gen 1; 4 x USB 2.0/1.1 |
| Internal I/O | 1 x USB Type-C (Gen 2); 2 x Thunderbolt™ headers; 3 x Addressable RGB Gen2; 1 x Power/Reset buttons |
| Unique Features | GIGABYTE Control Center (GCC); Q-Flash Plus; Smart Backup |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
