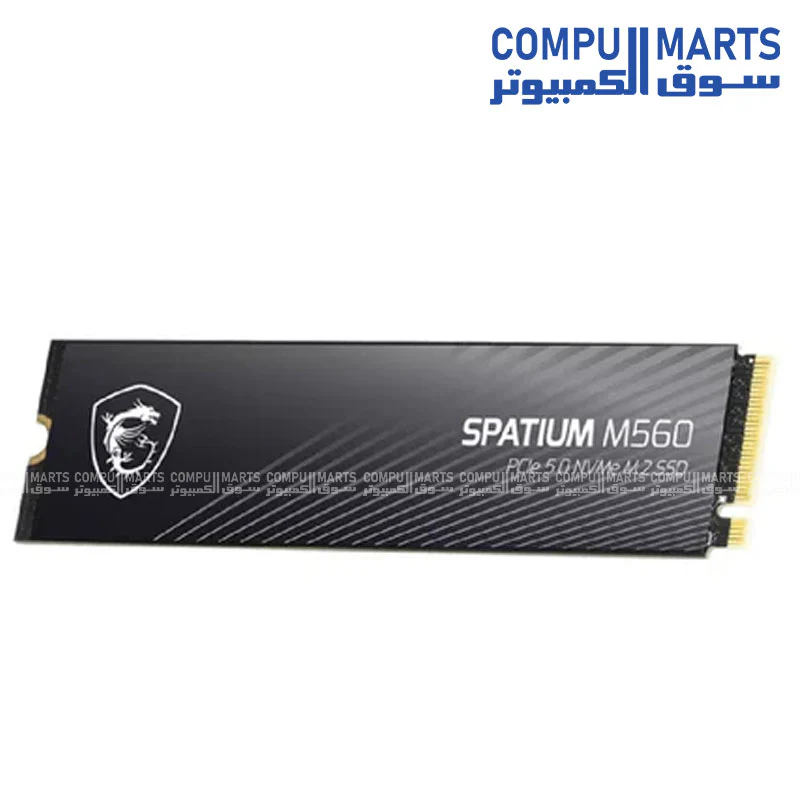

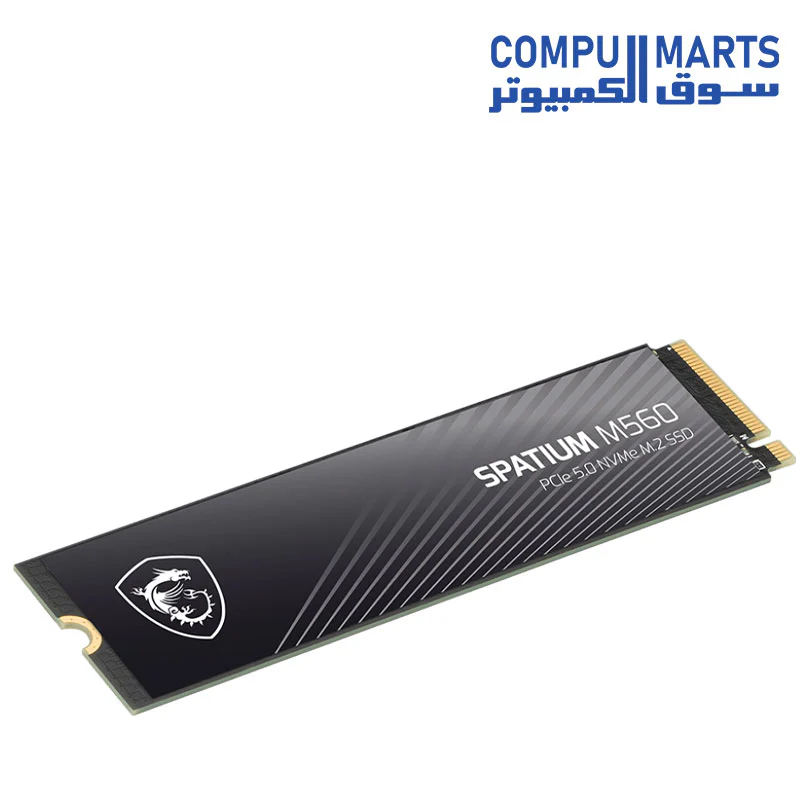

MSI SPATIUM M560 PCIe 5.0 NVMe M.2 SSD

MSI SPATIUM M560 PCIe 5.0 NVMe M.2 SSD

Category Specification Details
Model Name SPATIUM M560 PCIe 5.0 NVMe M.2
Capacity 1TB / 2TB
Controller PHISON E31T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen5x4, NVMe 2.0
Compatibility PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read Speed 1TB: 10,200 MB/s | 2TB: 10,300 MB/s
Sequential Write Speed 1TB: 8,400 MB/s | 2TB: 8,700 MB/s
Random Read 4KB Up to 1,300,000 IOPS
Random Write 4KB Up to 1,400,000 IOPS
Power Consumption Max Operating: 5.9W | Idle (PS3): 50mW | Low Power (L1.2): 3.5mW
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 1TB: 600 TBW | 2TB: 1200 TBW
MTBF Up to 1,500,000 Hours
Warranty 5 Years Limited (or max TBW coverage)
Advanced Features TRIM, SMART, LDPC ECC Algorithm, End to End Data Path Protection, APST
Select Size
From $200.38
MSI SPATIUM M560 PCIe 5.0 NVMe M.2 SSD—
$200.38
Product image 1
Product image 2
Product image 3
Product image 4

Description

Category Specification Details
Model Name SPATIUM M560 PCIe 5.0 NVMe M.2
Capacity 1TB / 2TB
Controller PHISON E31T
Flash Memory 3D NAND
Form Factor M.2 2280
Interface PCIe Gen5x4, NVMe 2.0
Compatibility PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read Speed 1TB: 10,200 MB/s | 2TB: 10,300 MB/s
Sequential Write Speed 1TB: 8,400 MB/s | 2TB: 8,700 MB/s
Random Read 4KB Up to 1,300,000 IOPS
Random Write 4KB Up to 1,400,000 IOPS
Power Consumption Max Operating: 5.9W | Idle (PS3): 50mW | Low Power (L1.2): 3.5mW
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 1TB: 600 TBW | 2TB: 1200 TBW
MTBF Up to 1,500,000 Hours
Warranty 5 Years Limited (or max TBW coverage)
Advanced Features TRIM, SMART, LDPC ECC Algorithm, End to End Data Path Protection, APST
